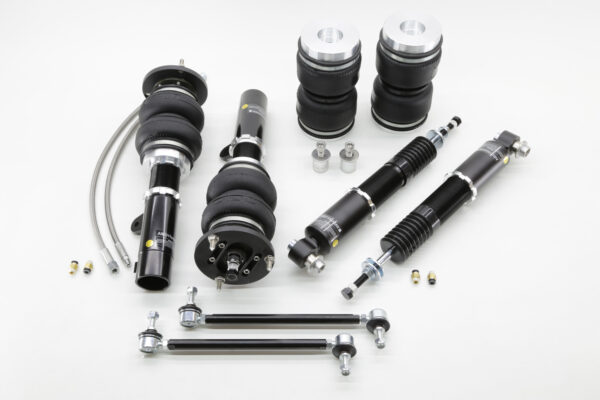

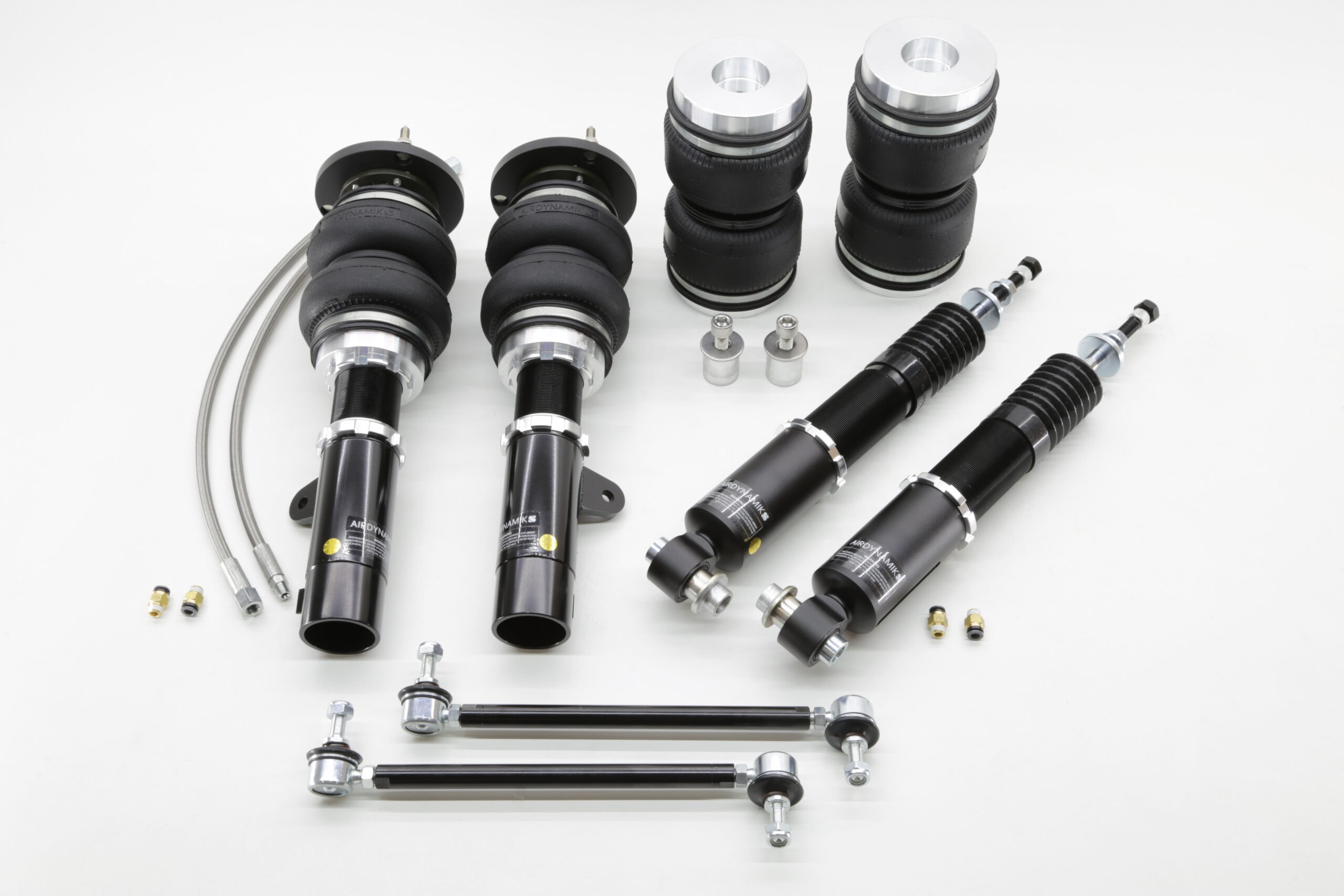

BMW 5 SERIES WAGON AWD (E61) AIR SUSPENSION SET

Part number: BM48-AD
  • Front adjustable camber plates
  • 24 Damping adjustment level
  • Adjustable lower mounts
  • Bolt on application/ No modification needed
  • Double bellows separate air springs
  • Monotube strut internal configuration
  • Adjustable sway bar end links
  • Stainless hardware
  • Push to connect 1/4” port

$2,340.00

In Stock

Description

The Airdynamiks air strut upgrade for BMW 5 Series Wagon X-Drive (E61) 2004-2010 offer you the ability to adjust the ride height of  approximately 4.5-5 inch from inflated to aired out. The threaded shock body and lower mount allow you to adjust the range you want to keep a secure aired out height and easily reach your desired ride height or the perfect fitment you are looking for. Designed to perform when you ask more from your suspension, the monotube shock configuration offer optimized handling performance while the 24 level of damping adjustment allow you to get the exact comfort level you are looking for.

This suspension system come with front adjustable camber plates to set your wheel alignment to avoid excessive tire wear or to allow clearance for aggressive wheels when aired out. Front adjustable swaybar endlinks included.

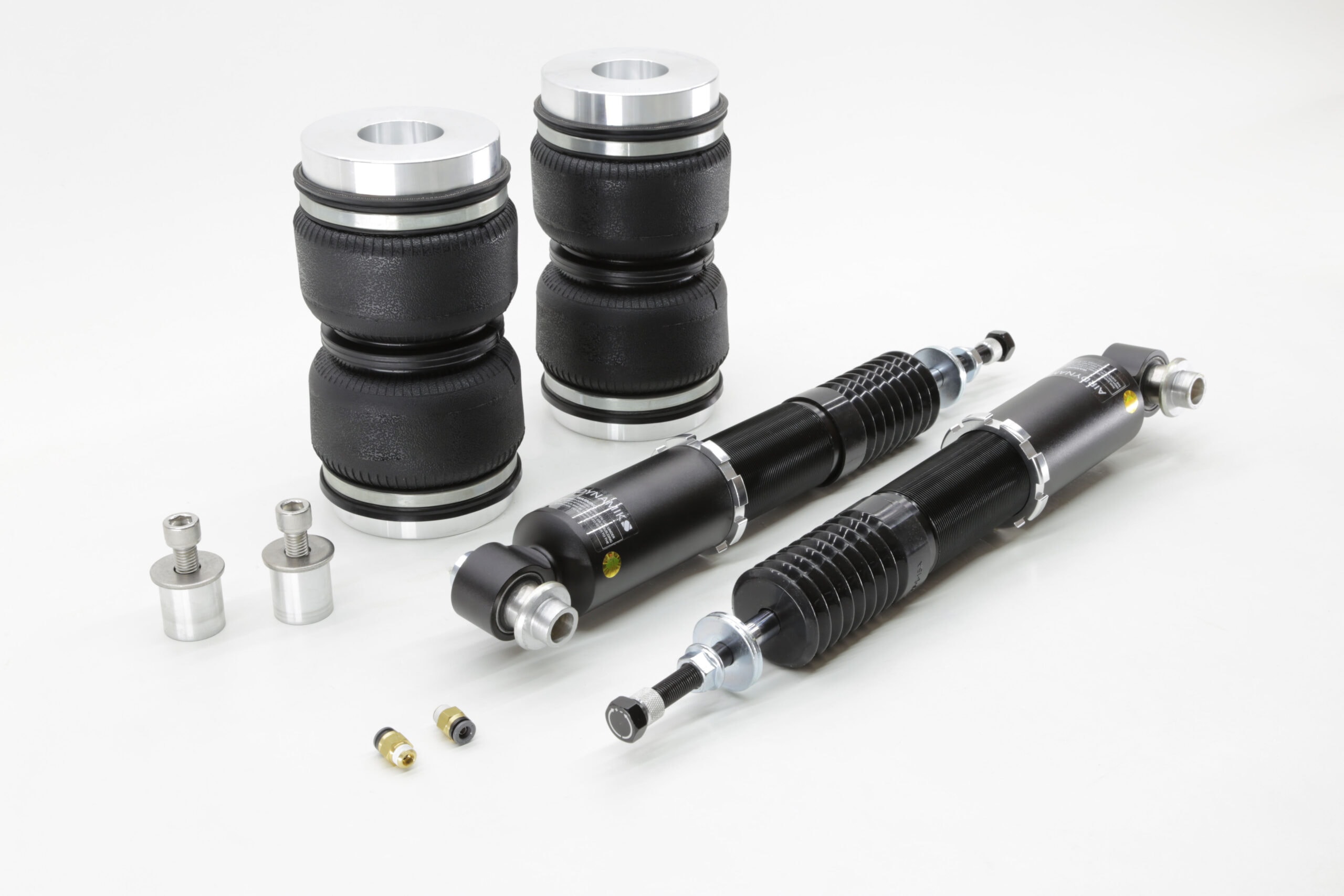

The rear separate bags configuration include adjustable shocks, bags and hardware. Shocks are designed to reuse the factory upper bushing. Damping adjustment are located on top of the shock to get easy access from the trunk. Adjustable shocks allow you to precisely set the working range of your suspension. This configuration only offer factory adjustment for wheel alignement. Aftermarket adjustable control arms may be needed for aggressive wheels and tight fitment

Airdynamiks products are always designed with quality material to ensure like-new look and performance for years.

This product fit on Wagon (E61) AWD only.

Additional information

Weight 24 kg
Dimensions 13 × 13 × 26 in
